RFID Automated Uniform Dispensers – Rotary & Bulk-Loading Titan Series
Smart automated dispensing solutions for textiles, scrubs & PPE management
In environments where hygiene, availability and accurate tracking are essential, automated textile management systems are a strategic asset. ZCS Automated Dispensers deliver controlled and traceable garment distribution at the point of use, reducing manual handling and ensuring reliable access. Patented rotary and high-capacity modular technologies combined with RFID-UHF identification provide precise item recognition, fast delivery and optimized stock rotation, with optional ozone sanitization to support hygiene standards.
Each dispenser integrates with the ZCS software ecosystem for real-time monitoring, usage analytics and remote configuration. This unified, data-driven approach enhances availability, reduces waste and ensures consistent service quality across any facility.
Cost saving icon
Reduced losses, optimized stock and manual work — with real-time data for total inventory control
24/7 service icon
Always available for authorized staff. Pick-up in under 4 seconds, quick queue management and high turnover
Hygiene safety icon
Ozone sanitization and RFID tracking ensure daily garment rotation and controlled, single-item access to prevent contamination
Compact design icon
Efficient and modular layouts for intuitive management — compact, elegant and designed to optimize every square meter
Engineered for performance in any workflow
A smooth, intuitive interaction: cardless pick-up via mobile app, smart sensors, automatic gate opening/closing, and adjustable slots in multiple widths for any garment type.
Low-voltage 24V brushless motors and flexible distribution of single items, mixed sets, or personal garments. Over 200 configurable parameters for full control and adaptability.
Touchless pick-up, optional ozone sanitization, and customizable design and colors. Multiple connectivity options—LTE, battery, Wi-Fi—allow seamless integration into any workflow.
Solutions

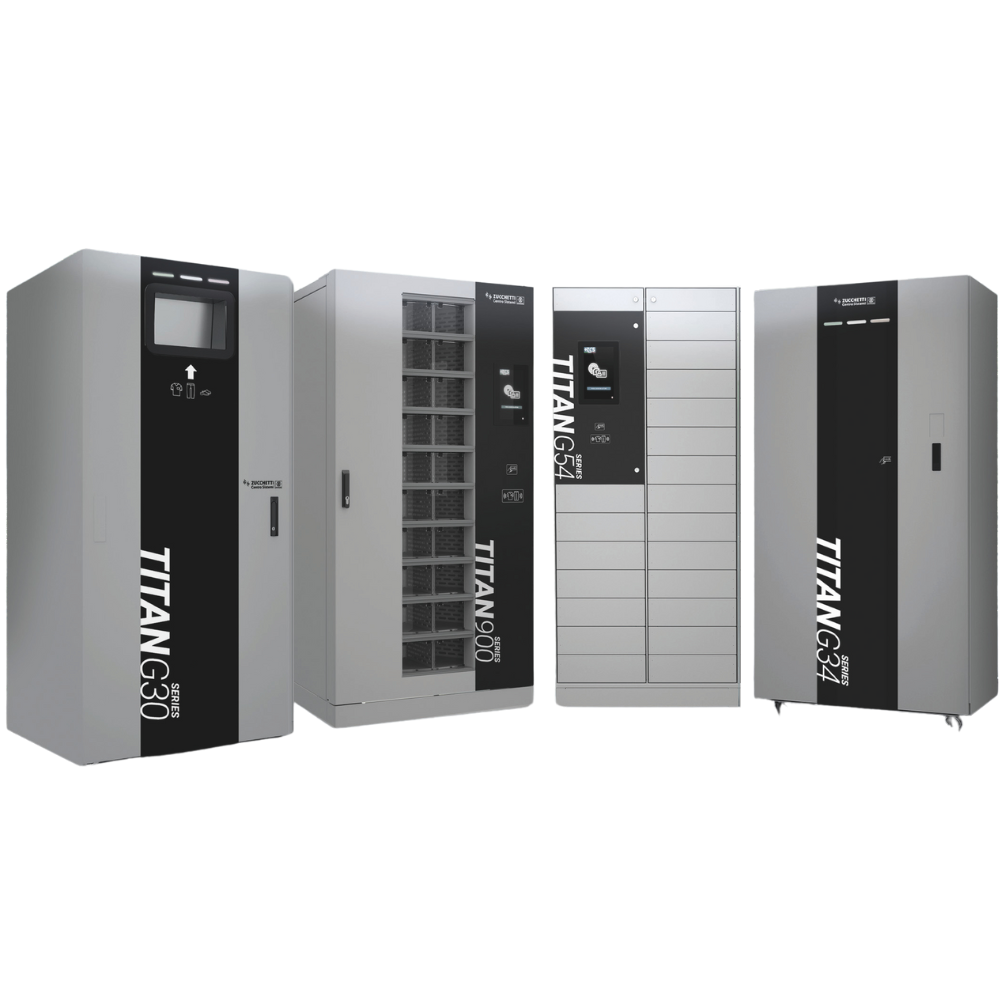

The 900 Series simplifies distribution in compact spaces, while the 950 Series handles large volumes with robotic precision — two systems, one integrated logic.
910 Standard & Slim
910 Standard version: Dimensions: W 985 – D 1055 – H 1950mm, Slots number: from 100 to 600, Gates number: 10 (h 13.5 cm)

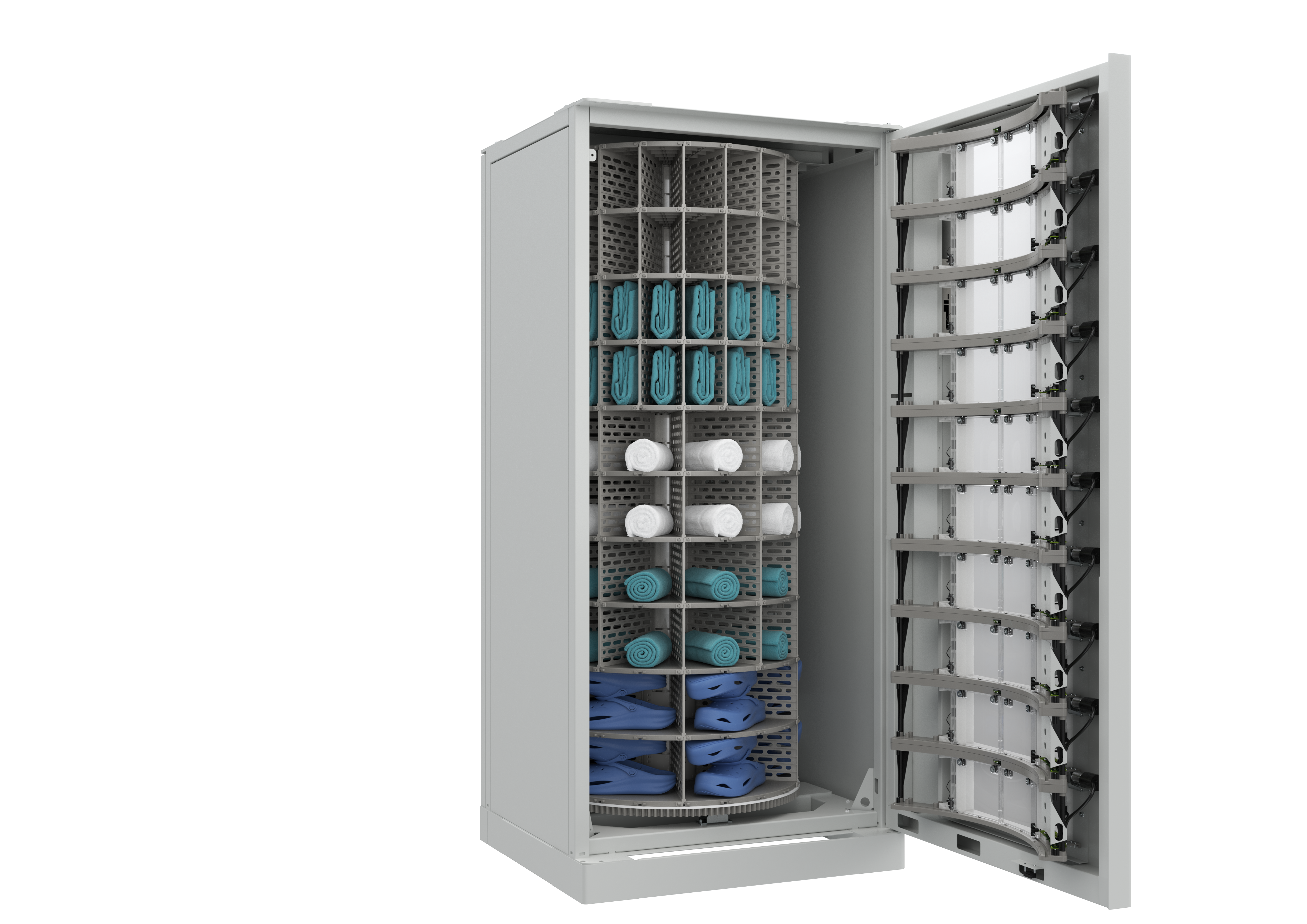

910 Slim version: Dimensions: W 905 – D 805 – H 1950 mm, Slots number: from 100 to 200, Gates number: 10 (h 13.5 cm)

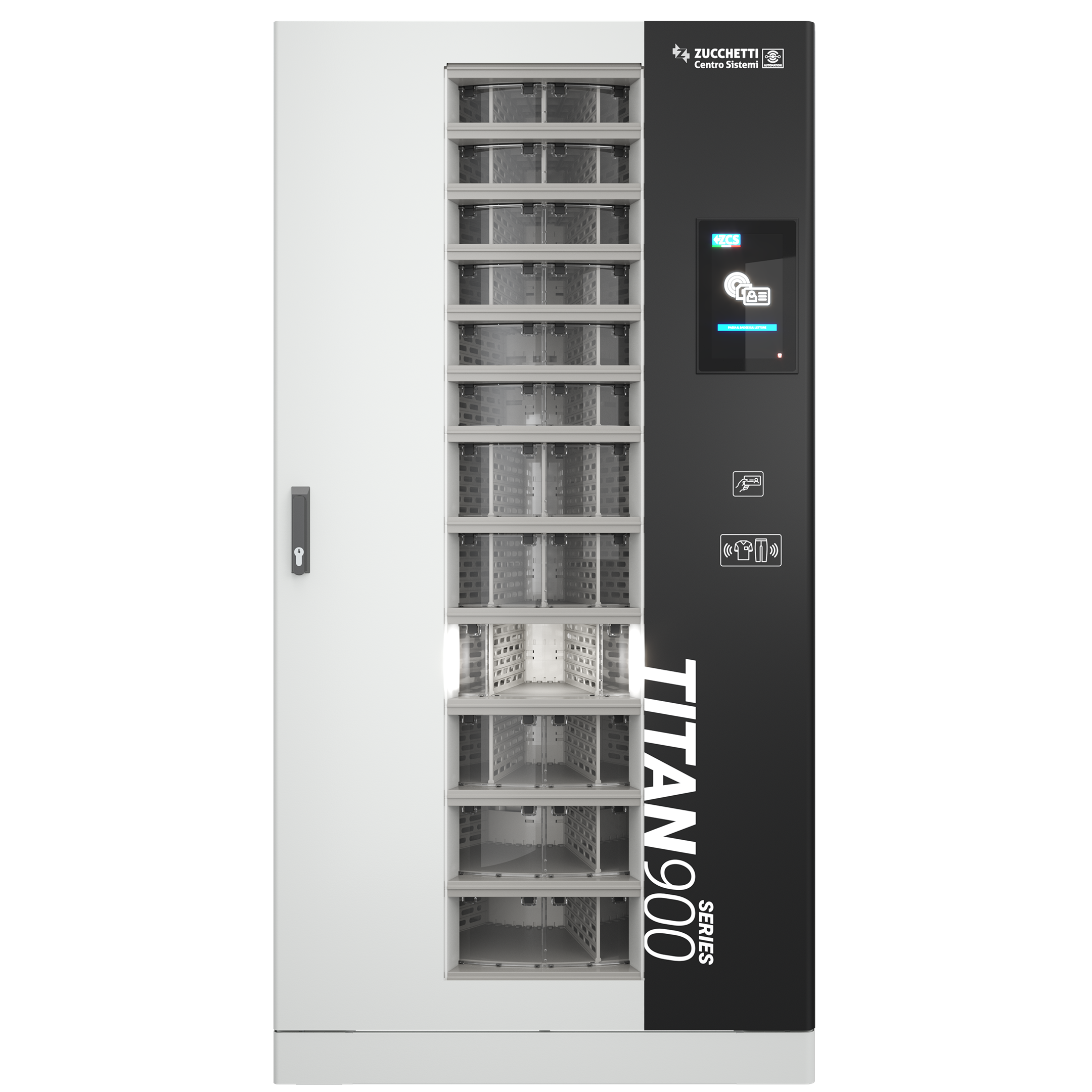

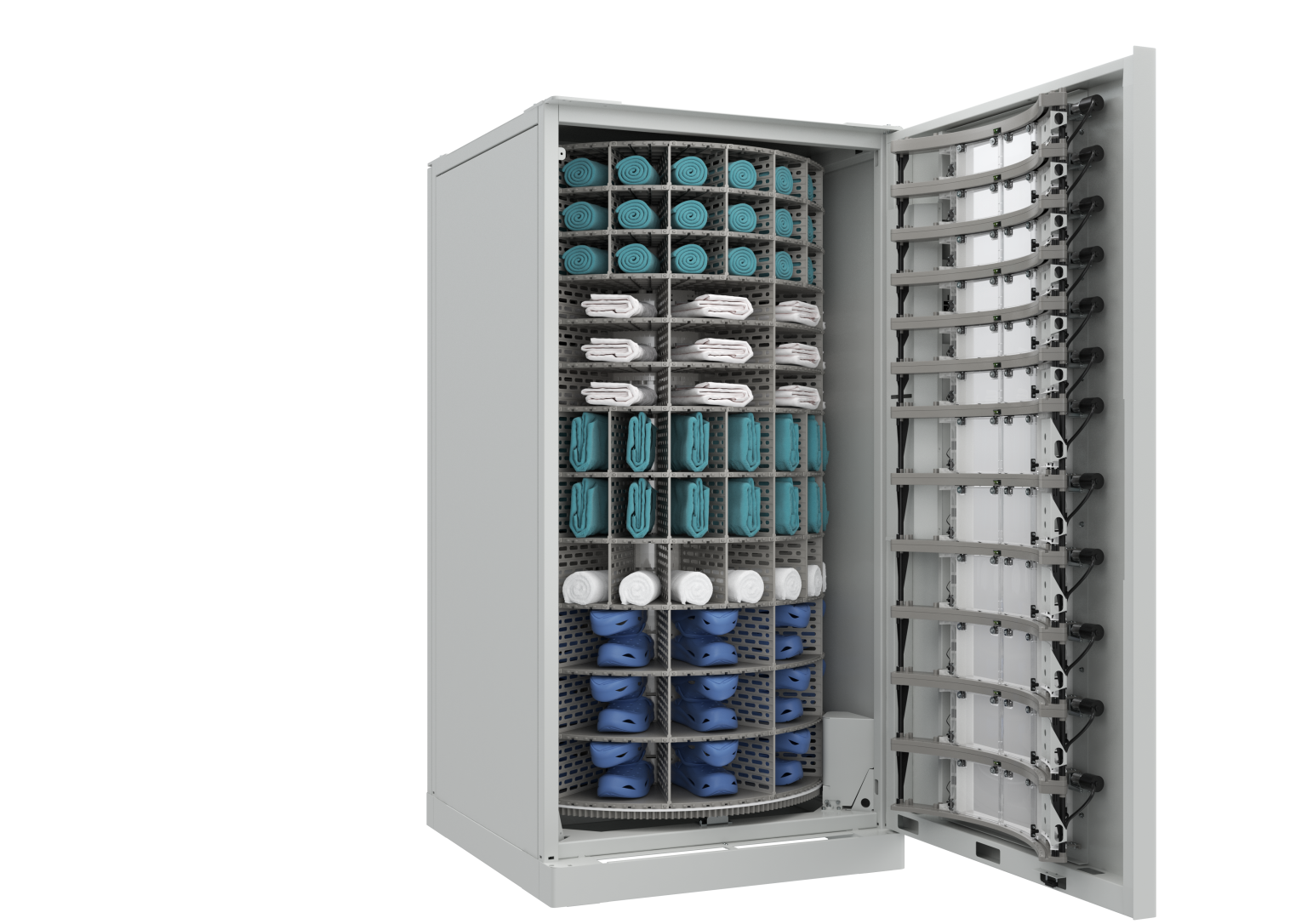

912 Standard & Slim
912 Standard version: Dimensions: W 985 – D 1055 – H 1950mm, Slots number: from 120 to 720, Gates number: 12 (n°6 h=13.5 cm and n°6 h=8 cm)
912 Slim version: Dimensions: W 905 – D 805 – H 1950 mm Slots number: from 150 to 300 Gates number: 12 (n°6 h=13.5 cm e n°6 h=8 cm)

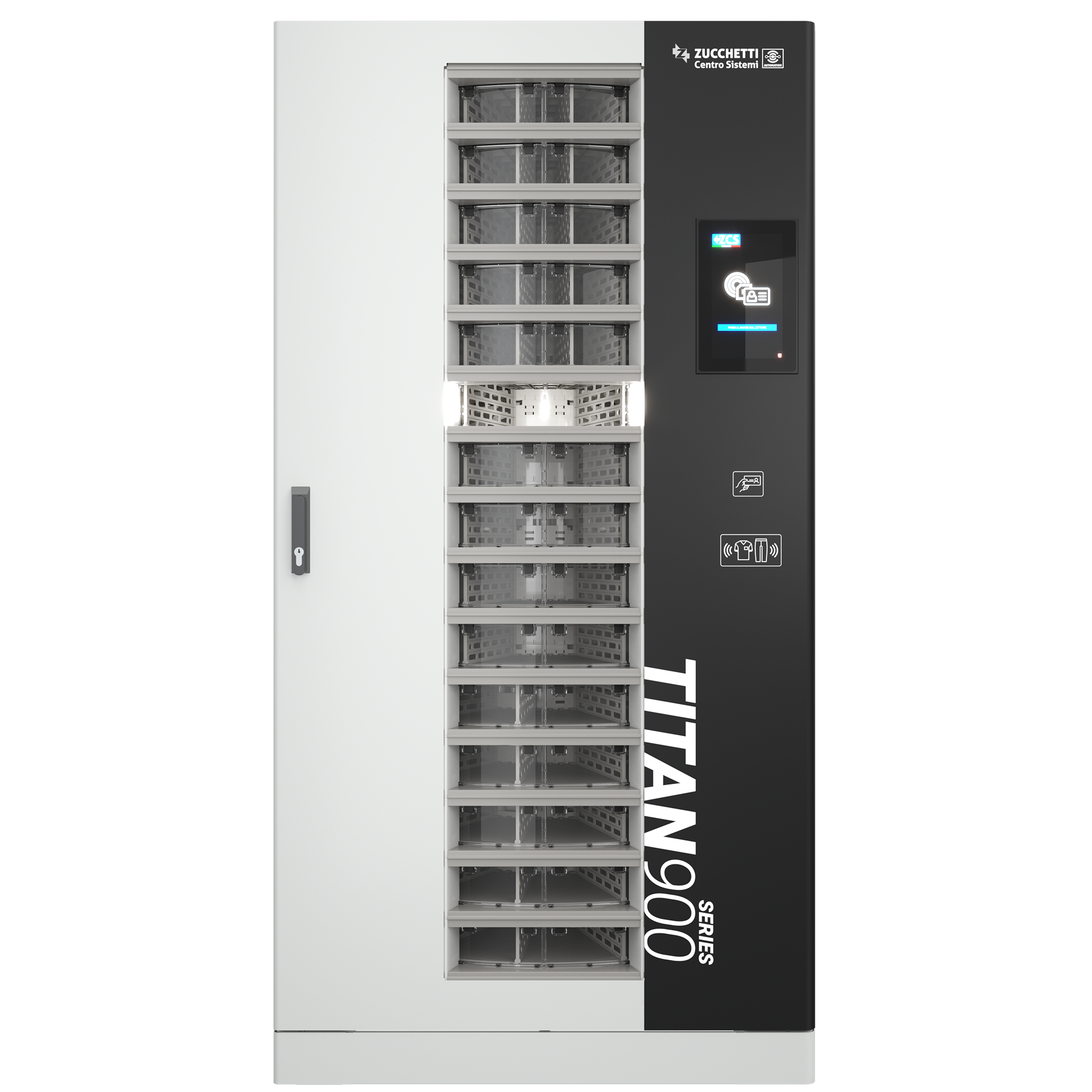

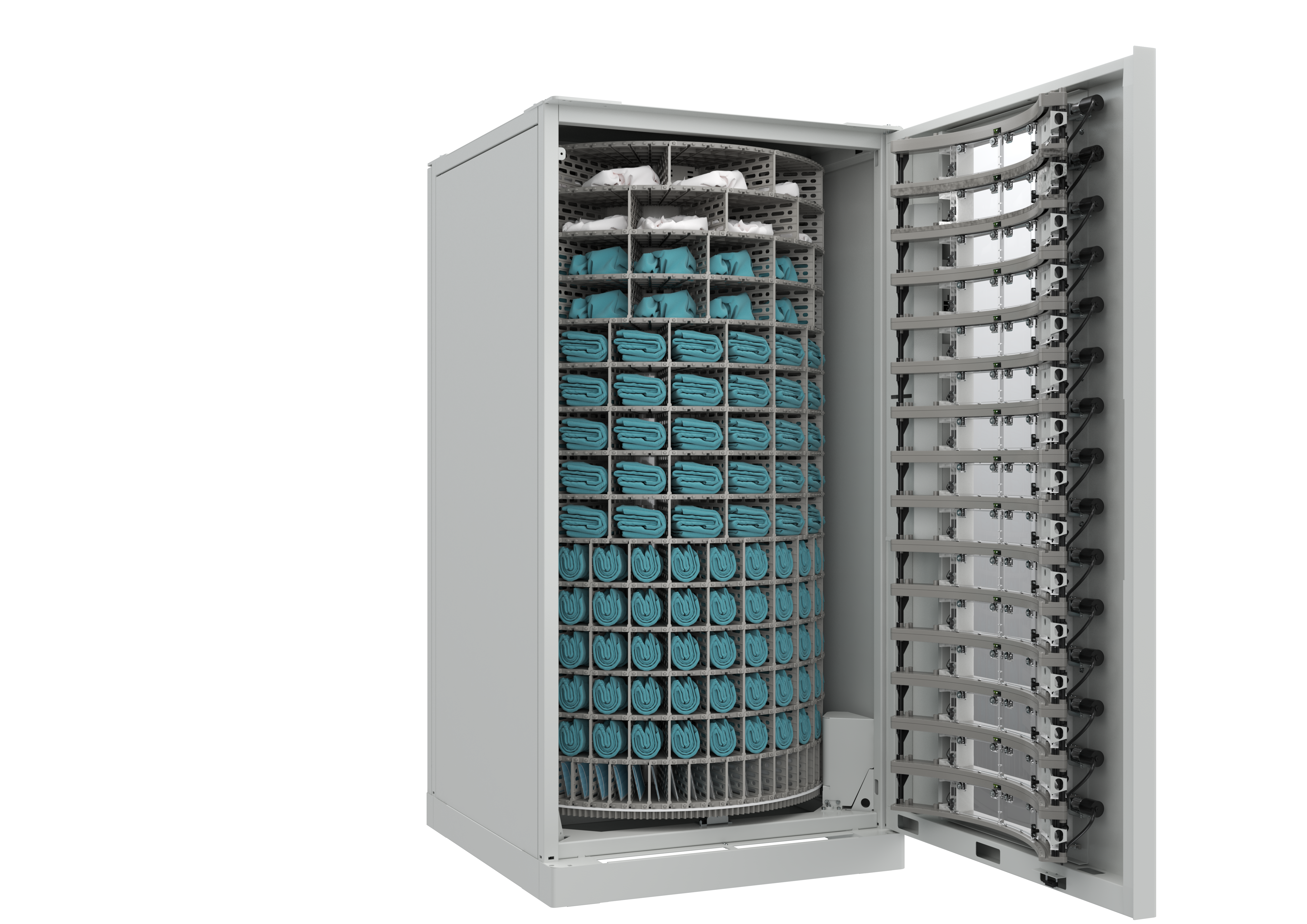

915 Standard & Slim
915 Standard version: Dimensions: W 985 – D 1055 – H 1950mm, Slots number: from 150 to 900, Gates number: 15 (h=8 cm)
915 Slim version: Dimensions: W 905 – D 805 – H 1950 mm Slots number: from 150 to 300 Gates number: 15 (h=8 cm)

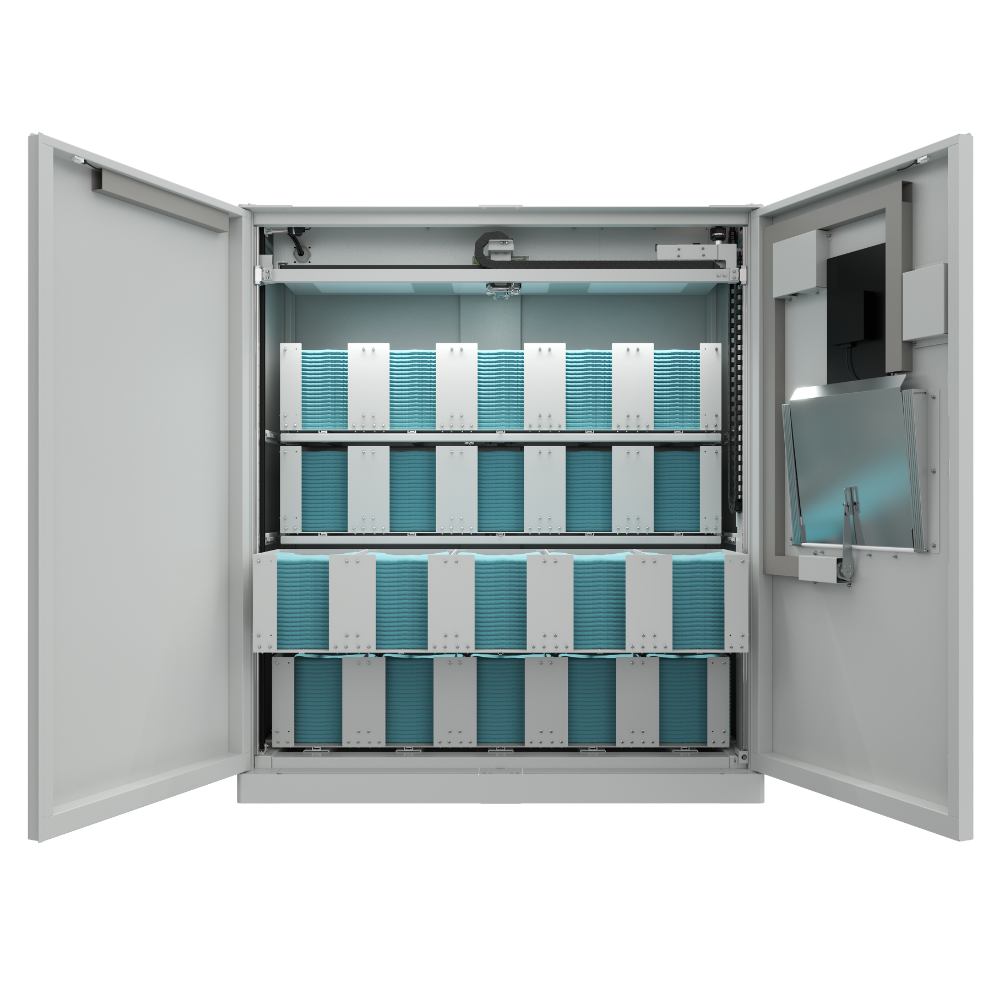

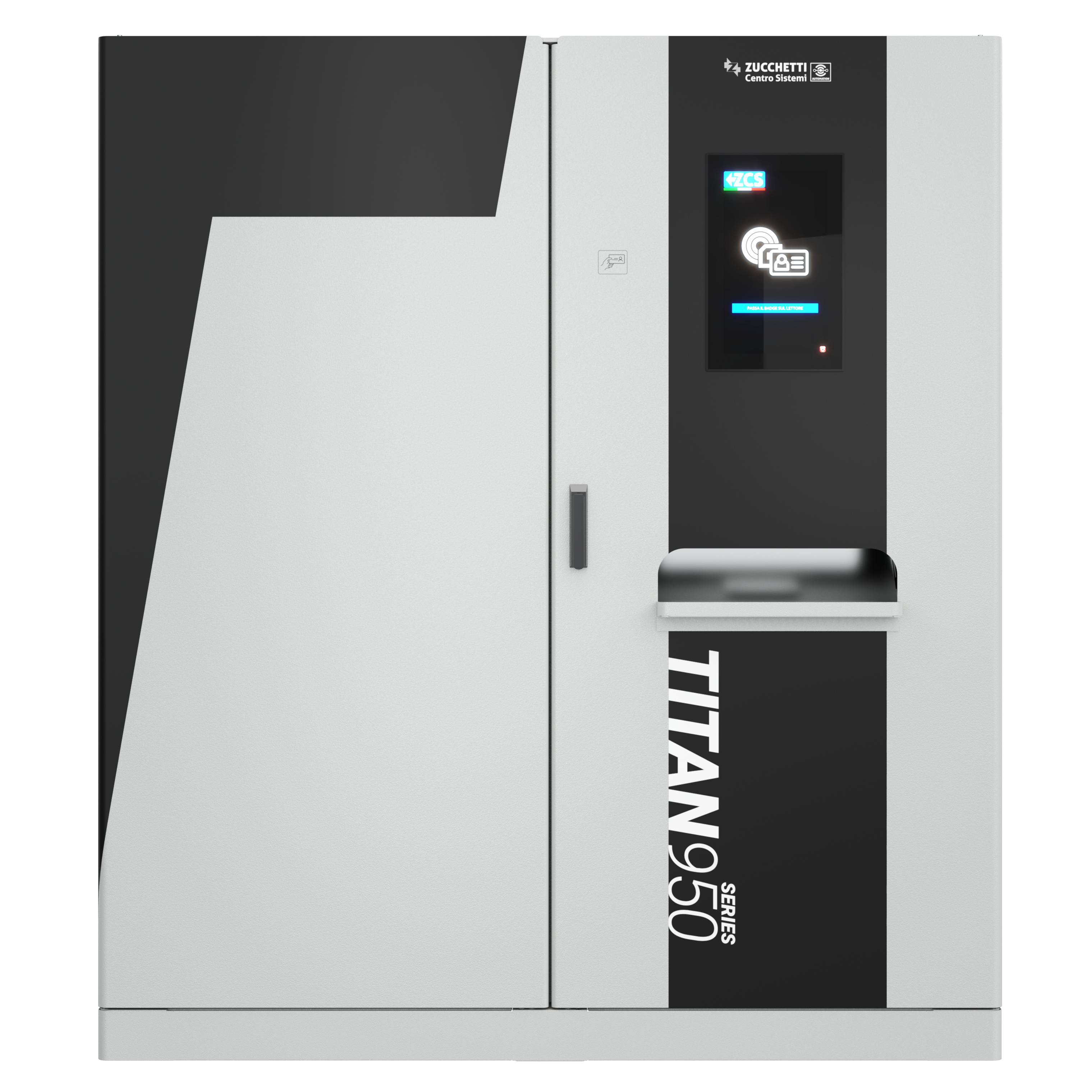

950
950 version: Dimensions: W 1700 – D 795 (removable withdrawal tray 840 D) – H 950 mm Boxes number: 20, 24, 28.
The 4 shelves (rows) are modular and can be setup independently according to the 3 available widths: 220 mm – 250mm – 300mm
How it works
1. Check uniform availability via app
Before reaching the dispenser, users can check garment availability across departments through the mobile app. Each user has a personal quota based on their dressing profile and role.

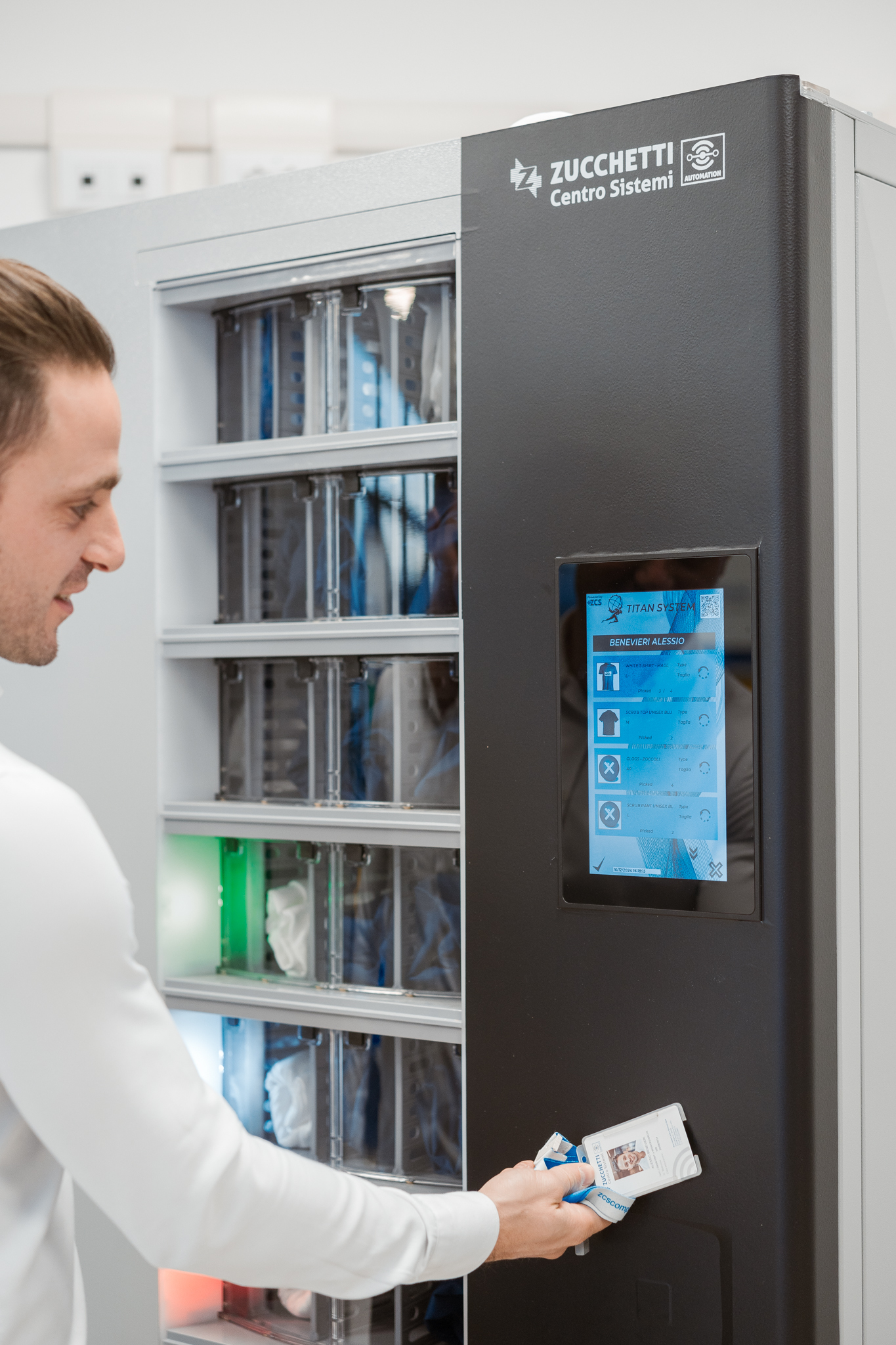

2. Identification & access
At the dispenser, the user identifies via badge, RFID card or smartphone app. Permissions define which machines and which garment types they can access.

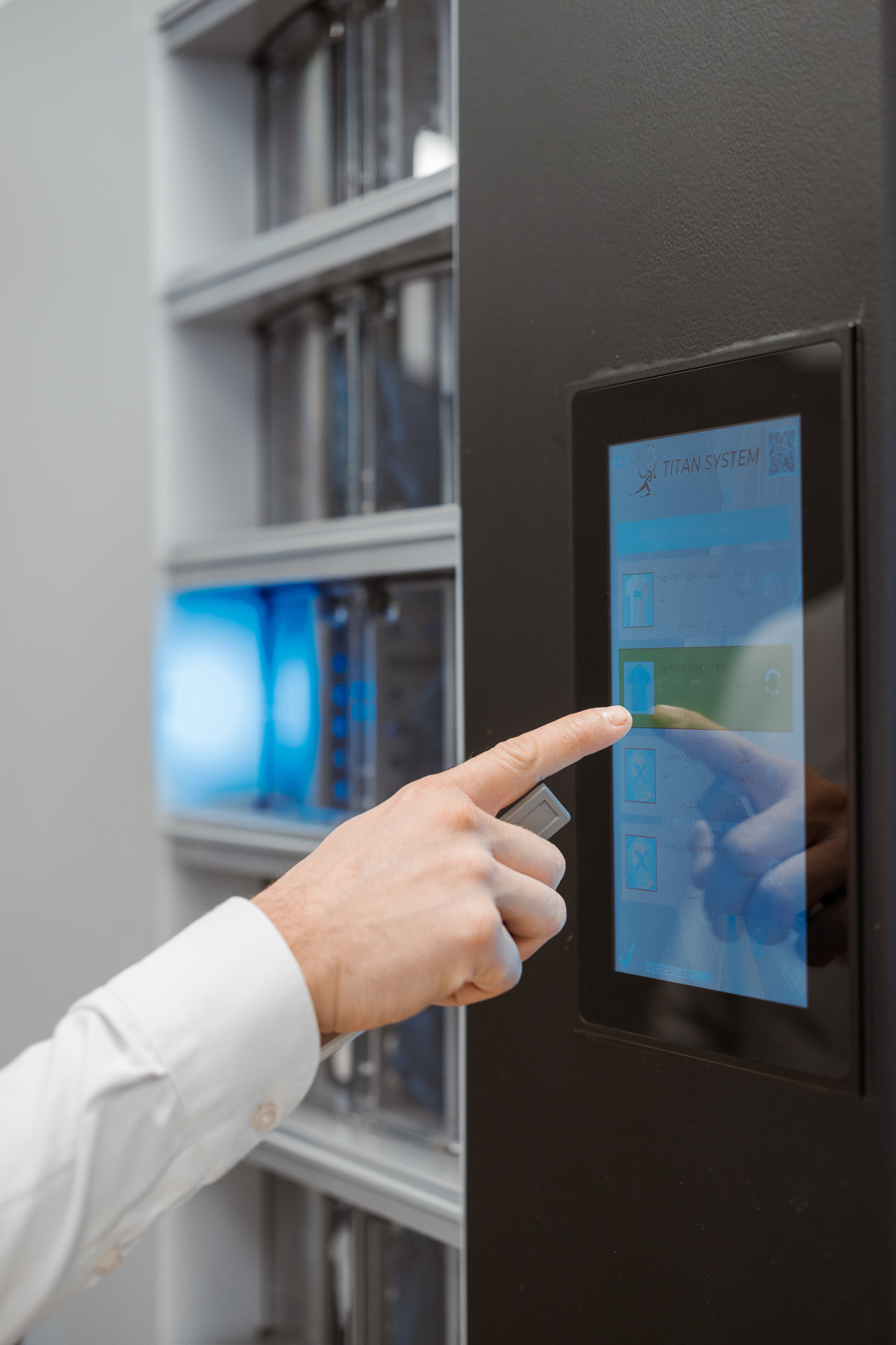

3. Select the required uniform
The display shows only the items the user is authorized to pick up.
- 900 Series: selection triggers the opening of the correct rotary gate.
- 950 Series: selection instructs the robotic arm to retrieve the requested item.
4. Automatic dispensing & pick-up
The dispenser prepares the item for collection:
- 900 Series: the selected gate opens and releases the garment in ~4 seconds.
- 950 Series: the robotic arm picks the item and delivers it to the tilting door.
The user retrieves the garment and closes the compartment if required.

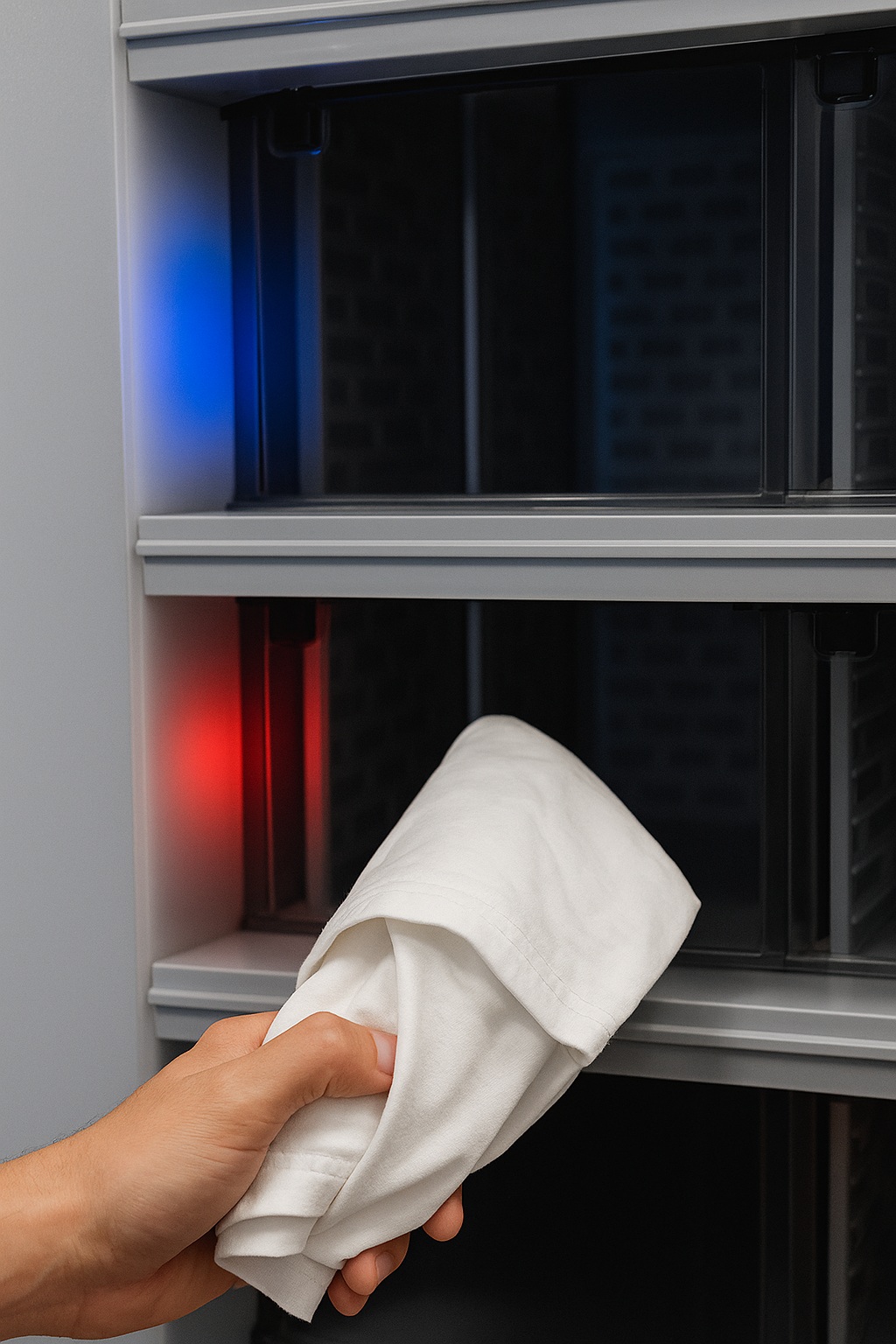

5. Automatic detection & registration
The system detects the actual removal of an item through integrated sensors.
If and only if the user removes the product:- one credit is deducted from the user’s account, and
- when RFID-UHF is enabled, the specific item is uniquely identified and assigned to that user.
In non-RFID configurations, item removal is confirmed through sensor-based detection. Credits, quotas, and inventory levels are updated in real time, ensuring full traceability and accurate stock rotation.
Sector uses for Automated Dispensers
Healthcare
Scrubs, uniforms, gowns, linen, clogs. Reliable garment availability for clinical workflows.
Hospitality
Uniforms, towel, kit sets. Organized distribution for staff and service teams.
Industry
Workwear • PPE • Consumables. Controlled access to workwear and operational items.
Frequently Asked Questions
An automated garment dispenser is a textile distribution system that delivers uniforms, scrubs, gowns and PPE directly to authorized users. Each item is RFID-tagged, allowing the dispenser to identify it, open the correct gate and release the garment in a few seconds. After pick-up, sensors confirm retrieval and update the user’s credit and stock levels in real time.
Rotary systems optimize space and speed with smart rotating gates.
High-capacity modular systems maximize storage, autonomy and load flexibility thanks to adjustable modules and large-volume compartments.
Yes — ozone sanitization, controlled single-item access and RFID traceability ensure strict hygiene and daily turnover.
Yes. Controlled single-item access, guided retrieval and optional ozone sanitization help maintain hygiene and support healthcare-grade protocols.
Absolutely. They support 24/7 use, remote configuration, real-time monitoring, stock alerts and analytics through the ZCS software ecosystem.
