Smart Receiver for Textile Return – G30 Chute & 717 Series
Automated RFID systems for fast and accurate return of soiled textiles
The ZCS Smart Receiver Series is designed to automatically track returned textiles, restore user credits within seconds, and ensure reliable traceability of all soiled items.
With 100% detection accuracy—even when multiple users return items simultaneously—the system guarantees fast workflows, precise tracking, and full control of soiled textiles before collection by the laundry.
Real-time sensors, three LED feedback signals, automatic alarms, and a wide range of options (badge access, clean/soiled selector, LTE, UPS, ozone sanitization) make the ZCS Smart Receiver Series a flexible and reliable solution for any facility.
Effortless & tracked garment return
Users simply drop uniforms through the chute— no authentication required and no individual scanning
100% accurate multi-user detection
The system identifies all dirty items returned simultaneously by multiple users, regardless of size or textile type
Faster operations & smarter management
Smart sorting and instant detection drastically reduce waiting times, keeping return areas organized and efficient
Touchless pick-up with automatic gate
A fully contact-free return process with automatic gate handling for better hygiene and faster flow
Touchless returns, instant detection
Capacity sensors, door sensors and chute sensors monitor the entire return cycle, ensuring safe, correct and optimized operations.
Returned items are recognized by their RFID tag, allowing precise tracking and user credit association without manual input.
Available in Standard (1m² footprint) or Slim models (50 cm deep + special trolley), plus wall-mounted or rear-chute variants to fit any architectural need.

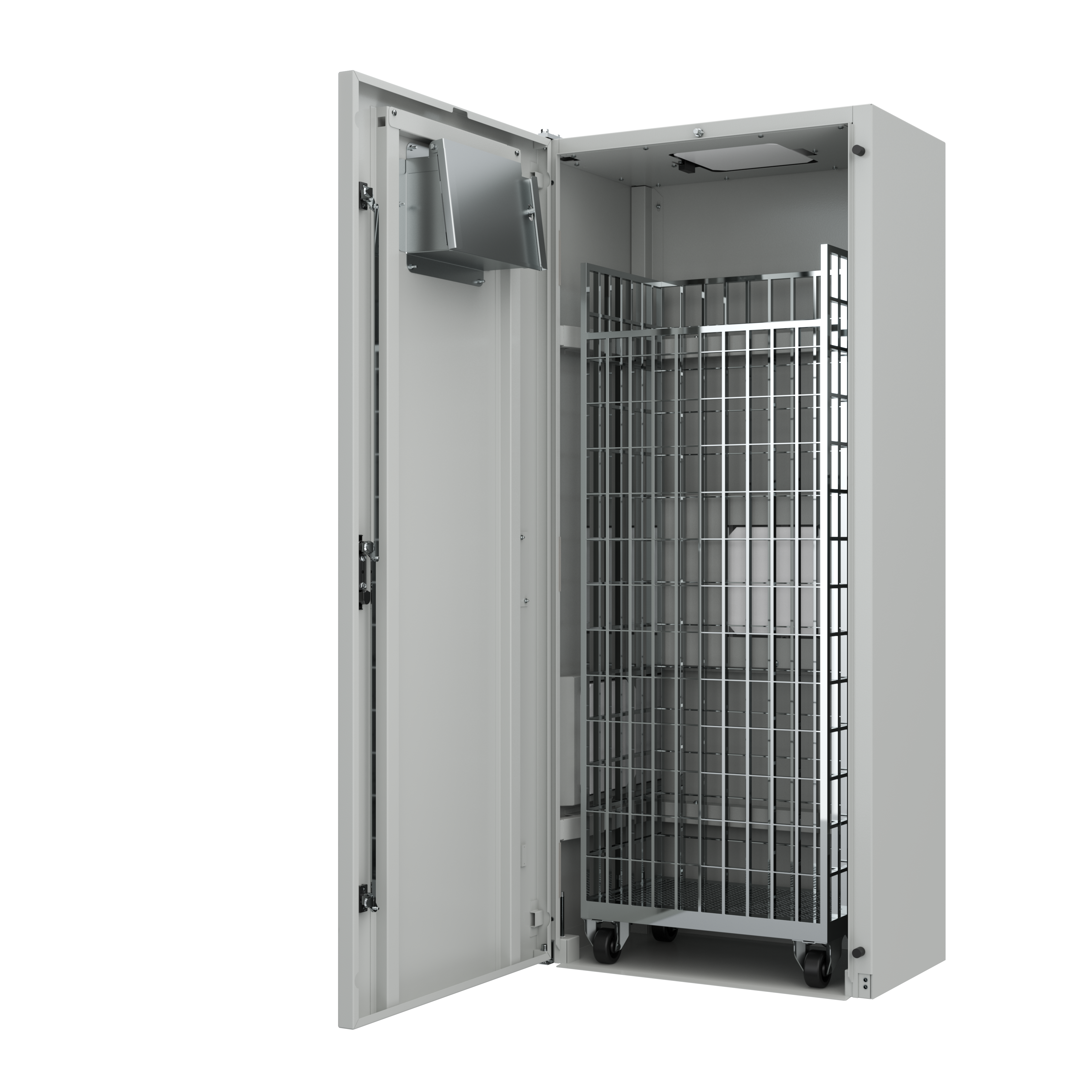

Alerts notify staff when the trolley is full or the system is offline. Optional features include card access, credit systems, automatic gates, clean/dirty selector, LTE, UPS and ozone sanitization.
Solutions
A versatile range of Smart Receivers designed to fit any space, workflow or RFID technology.

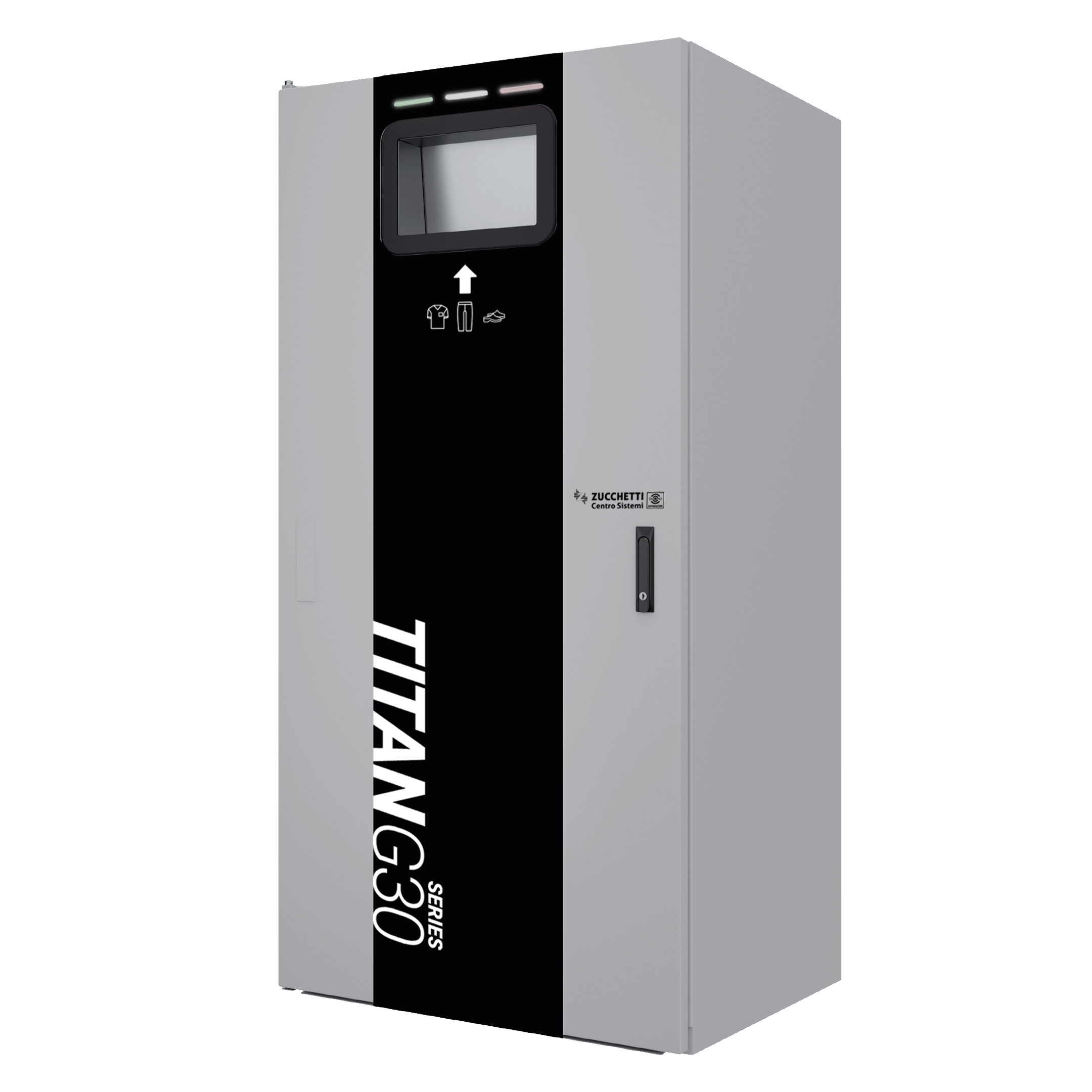

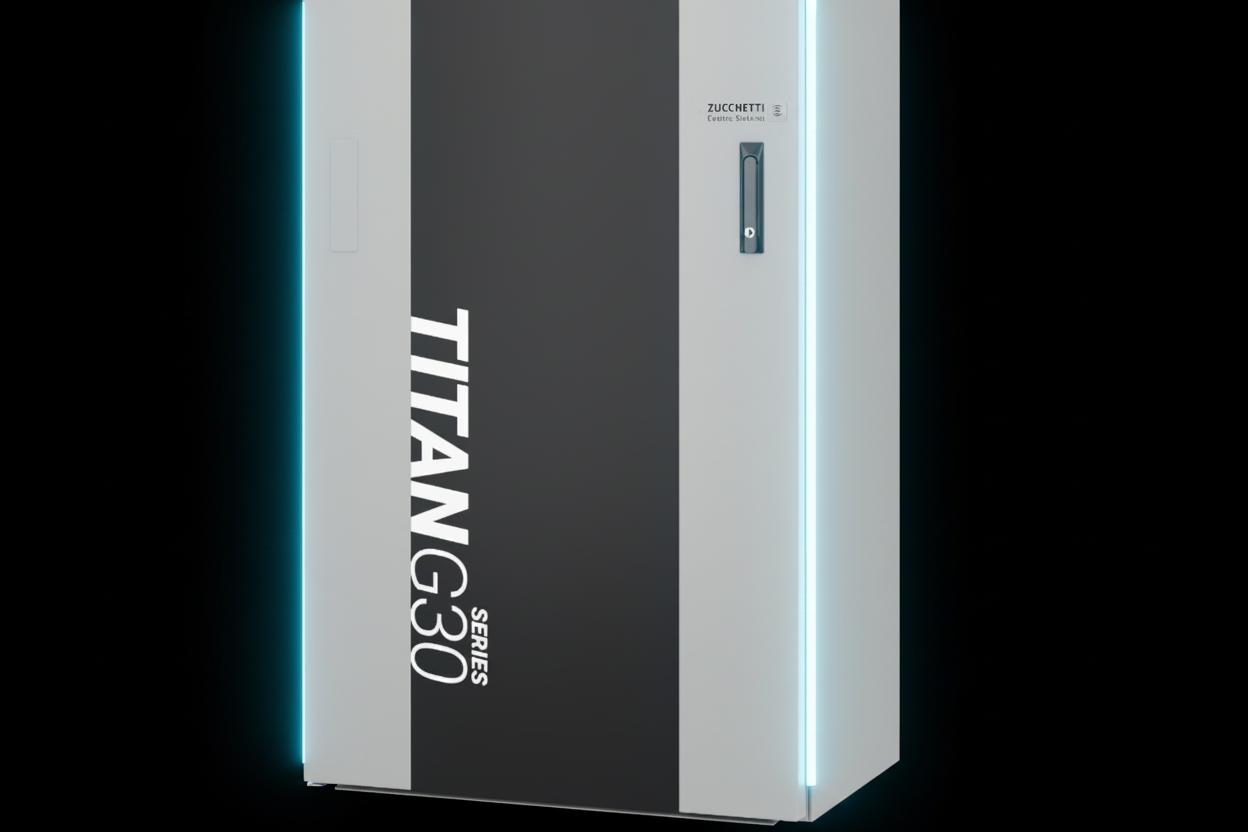

G30 Chute U/HF
Dimensions W 898 – D 958 – H 1924mm
Capacity 300 scrubs mixed sizes or 180 pairs of clogs
Item retrieval detection RFID-UHF / HF automatic soil garment identification
Options Credit system, lower chute, card access, automatic gate, clean/dirty selector, LTE, UPS, Ozone sanitization

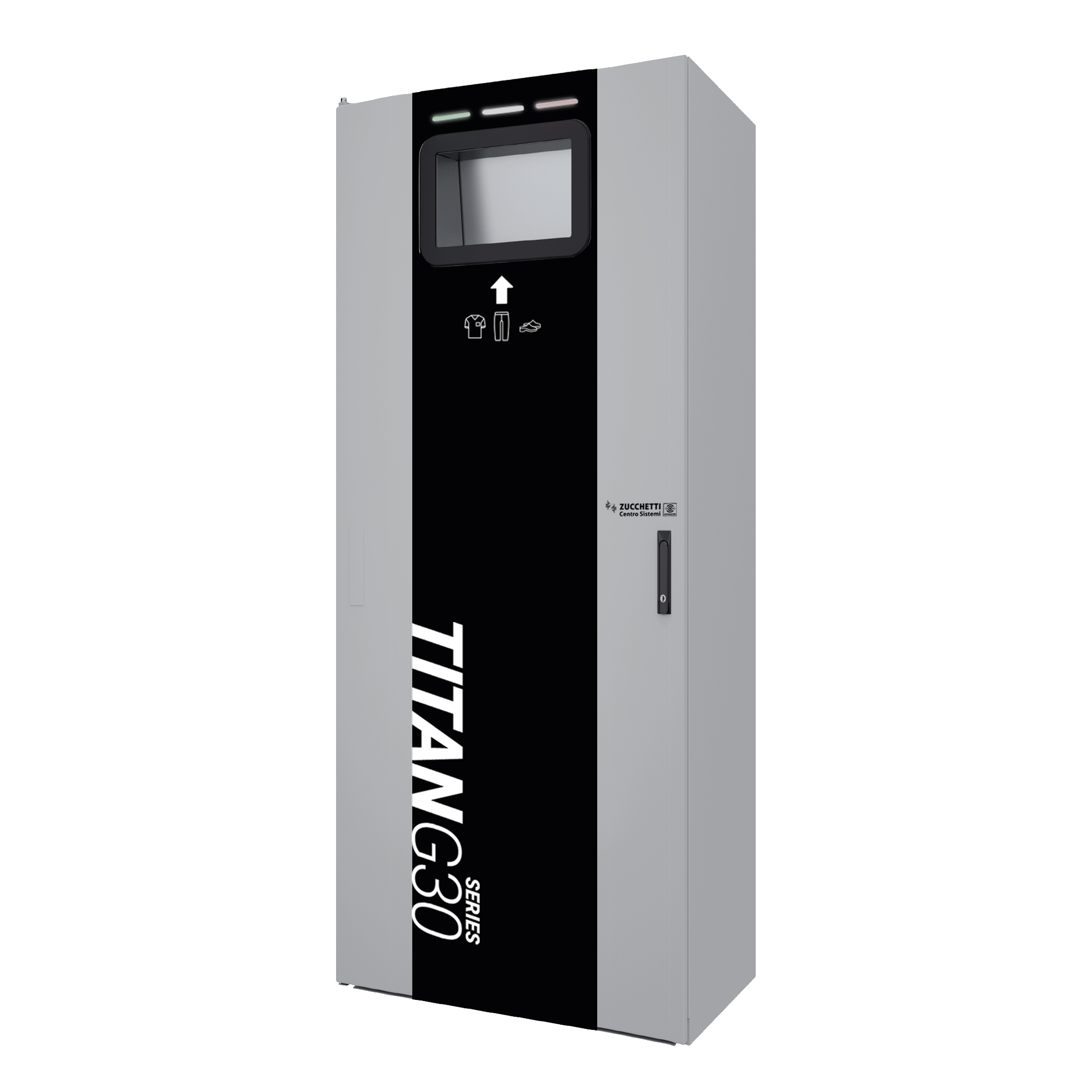

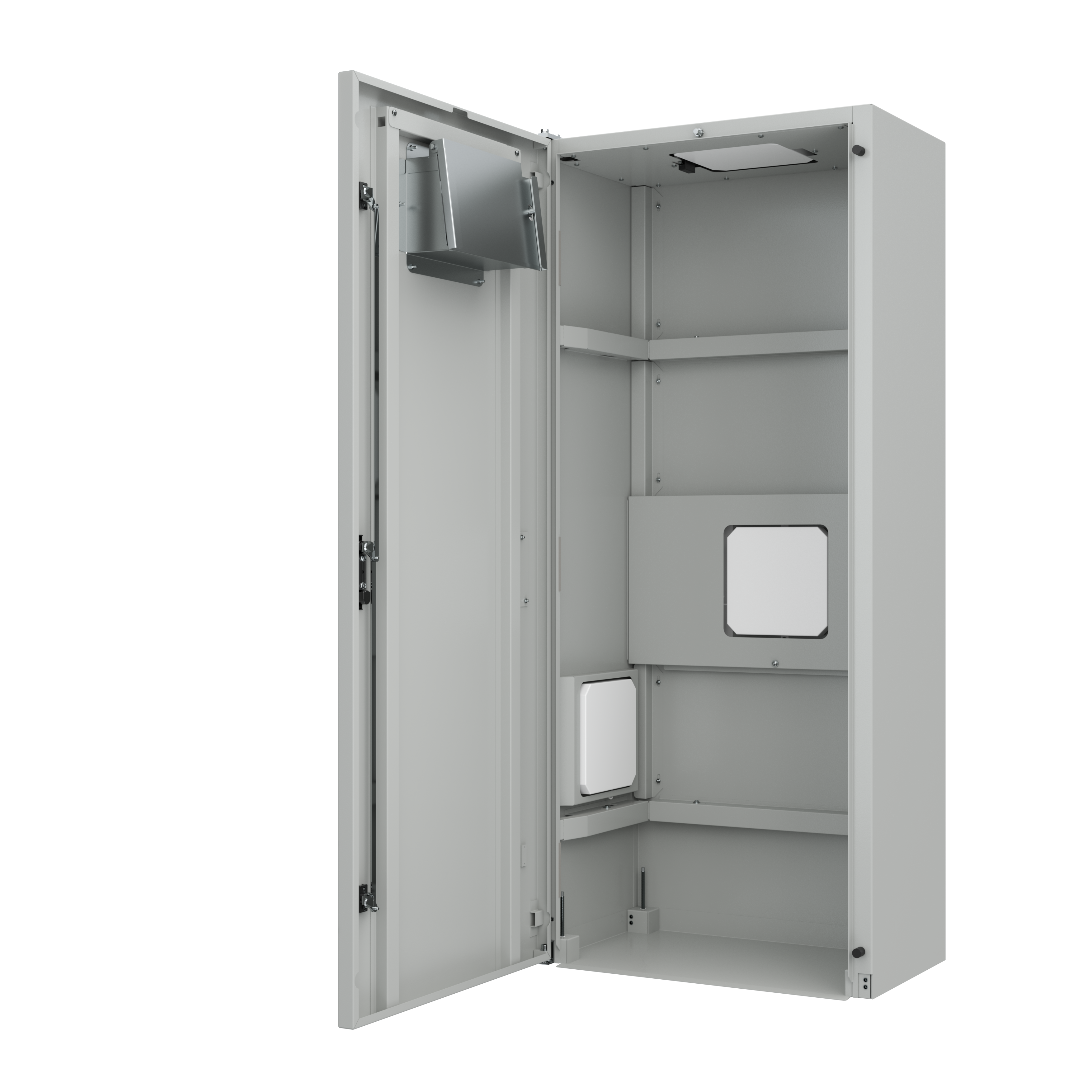

G30 Chute U/HF Slim
Dimensions W 898 – D 500 – H 1924 mm
Capacity Up to 300 scrubs (mixed sizes) or 180 pairs of clogs
Item retrieval detection RFID-UHF / HF automatic soil garment identification
Options Credit system Lower chute Card access Automatic gate Clean / dirty selector LTE, UPS Ozone sanitization

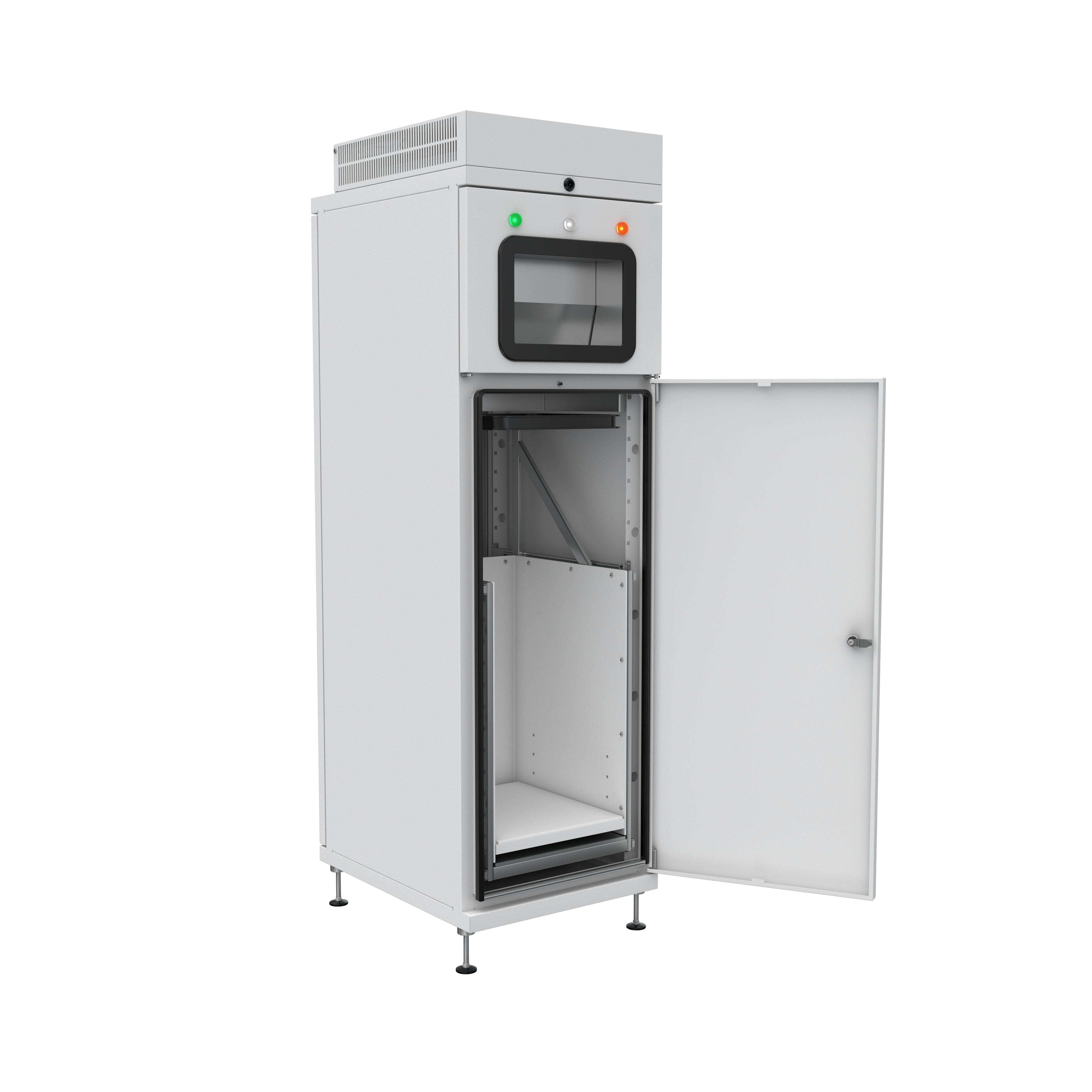

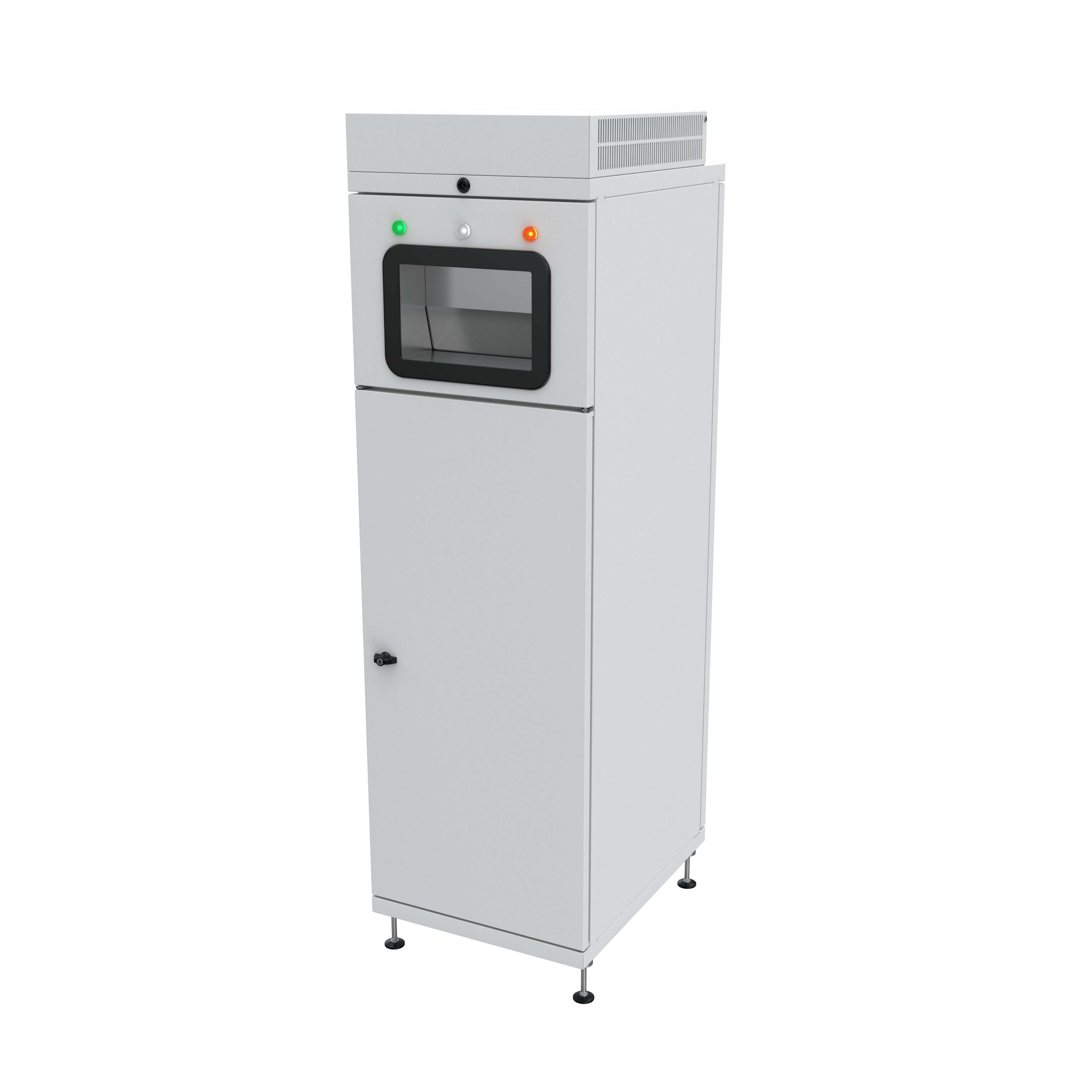

717 UHF
Dimensions W 730 – D 550 – H 1850 mm
Capacity Maximum volume 129 liters (dm)3
Item retrieval detection RFID-UHF garment identification
Options LTE, UPS

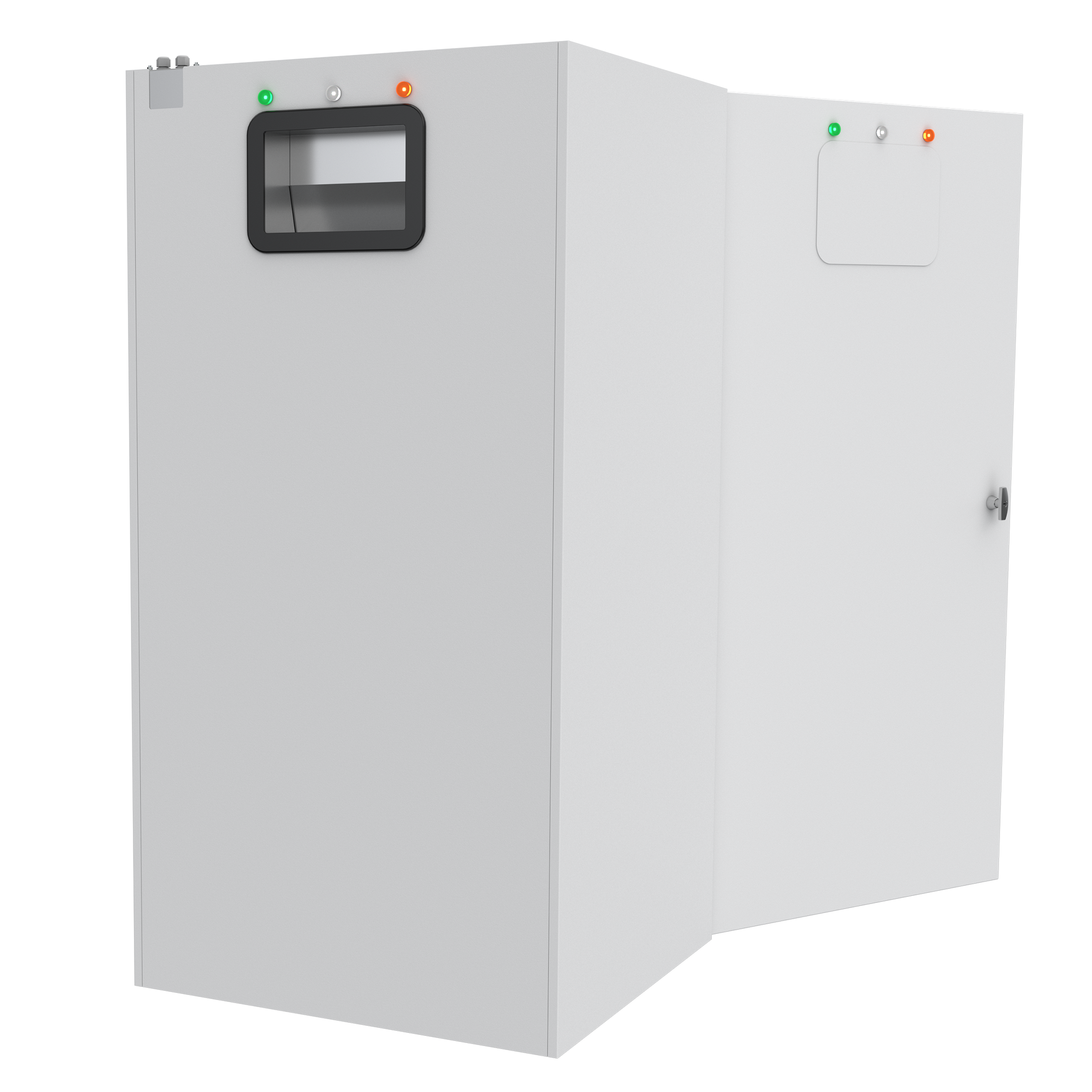

G30 Back Chute
Dimensions W 898 - D 958 - H 1924 mm
Item retrieval detection RFID-UHF automatic soil garment identification
Options Slim version, LTE, UPS
G30 Chute comes with 2 special versions: Rear chute has the chute installed in the back side and G30 Wall has the chute wall-installed to meet design needs.
How it works

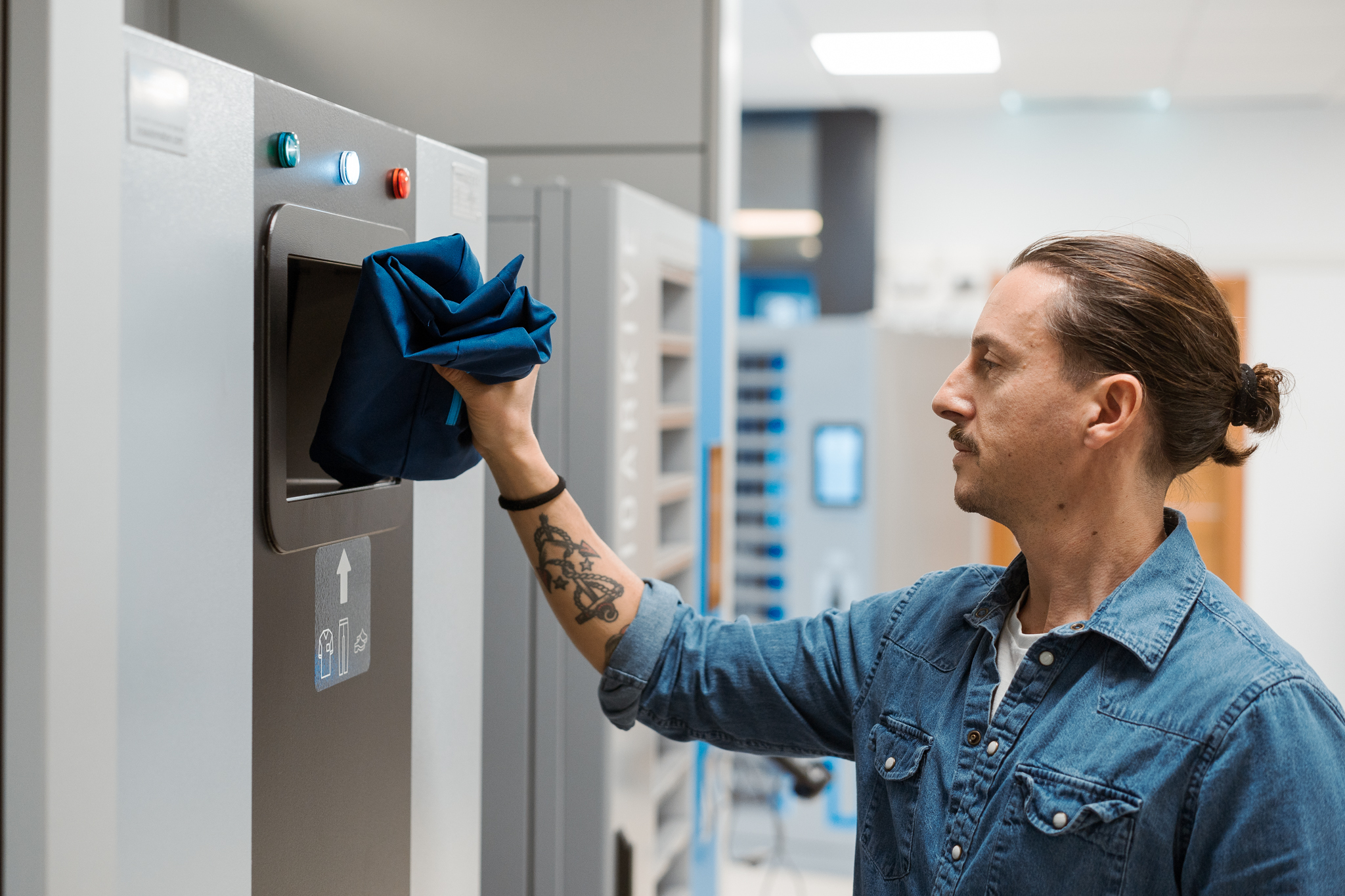

1. Return all dirty items through the chute
The user drops dirty uniforms or linen into the chute in a single gesture. All models (G30 UHF, G30 HF, 717) accept mixed sizes and types of scrubs at once.

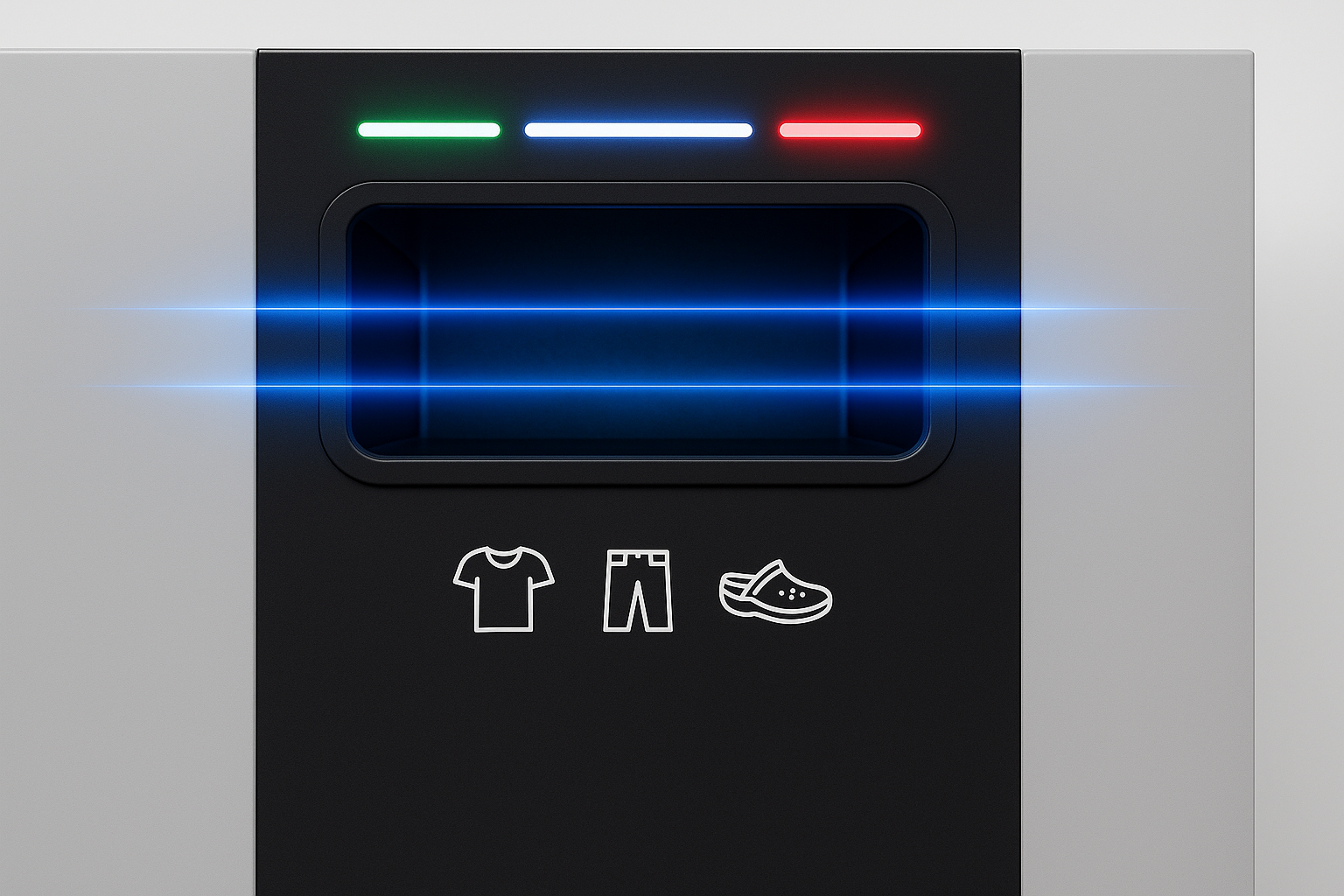

2. Automatic detection & user recognition
The system immediately scans all items via UHF or HF antennas, identifying them with 100% accuracy and retrieving the user’s identity from the RFID tag—no badge or login required.
3. Instant credit restoration
Within 2 seconds, the receiver updates the user’s credit based on the returned items. LEDs indicate system status (white = reading, green = complete, red = error/offline).
4. Full monitoring & queue optimization
Smart sensors track capacity, chute access and door status. Automatic alerts notify staff when trolleys must be emptied, ensuring smooth flow even with multiple users returning garments simultaneously.
Sector applications for Soil Receivers
Healthcare
Scrubs, gowns, uniforms, sweatshirts, clogs, flat linen. Ideal for fast, hygienic soil textile returns across wards, dressing areas and surgical units.
Hospitality
T-shirts, aprons, towels, kitchen uniforms, spa linen. Supports efficient return and tracking of staff textiles in hotels, resorts and wellness structures.
Industry
Coveralls, cleanroom suits, industrial uniforms, lab coats. Designed for controlled, traceable return of protective garments in industrial and manufacturing environments.
Frequently Asked Questions
A soil receiver is an automated unit that identifies returned soil textiles using RFID-UHF or HF detection. Users drop garments into the chute, and the system instantly reads each tag, updates inventory and restores credits without requiring authentication.
Yes. ZCS Soil Receivers detect all returned garments simultaneously with 100% accuracy, ensuring fluid queue management even during peak activity.
The G30 and 717 models support both RFID-UHF and RFID-HF, making them compatible with different textile tagging systems and laundry processes.
The Soil Receiver Series includes Standard, Slim, Wall Chute, Rear Chute and Compact (717) versions, allowing integration in laundry rooms, corridors, staff areas or architectural niches.
